DIY Components for Maker (2)

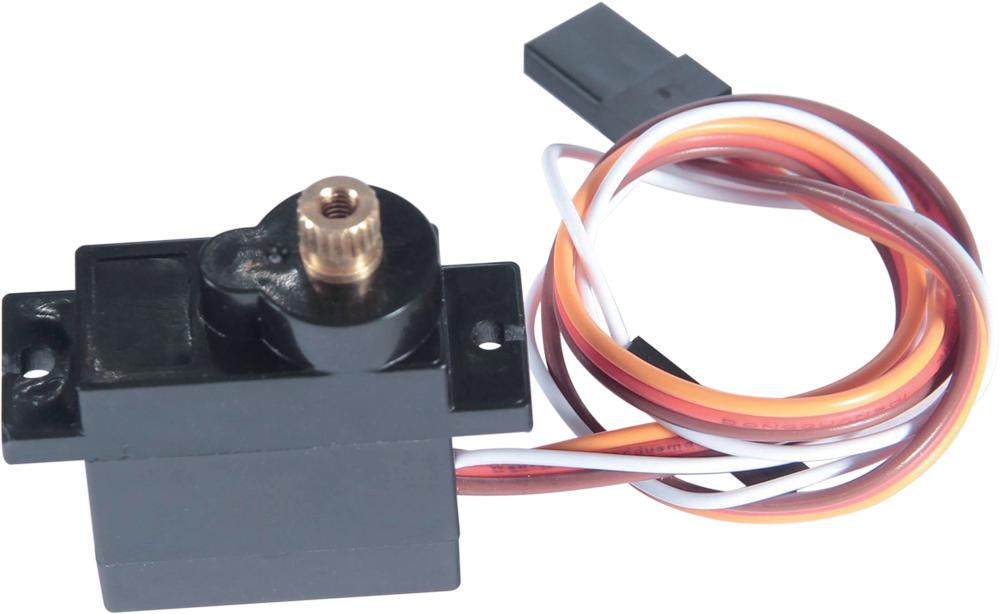

Analog Feedback Micro Servo1.8Kg/4 line

AD091

Dimensions: 11.58mm/0.45″x22.75mm/0.89″x29.19mm/1.14″
Max Dimensions: 11.58mm/0.45″x32.74mm 1.28″x31.19mm/1.22″
Wire length: 131.67mm / 5.18″
Torque: 25 oz x in / 1.8 kg x cm @6V
Speed: 0.1 sec/60° @6V
Weight: 15.81 grams
Dual ball bearing Metal gearbox

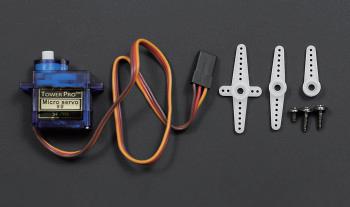

9g Micro Servo (1.6kg)

AC022

• No load speed: 0.12 seconds / 60 degrees (4.8V)
• Stall Torque: 1.6 kg / cm (4.8V)
• Operating temperature: -30 ~ +60 degrees Celsius
• Dead Set: 7 microseconds
• Operating voltage: 4.8V-6V
• Working current: less than 500mA
• Cable length: 250mm
• Size: 22mmx12.5mmx29.5mm
(0.9×0.5×1.2 in) • Weight: 9 grams

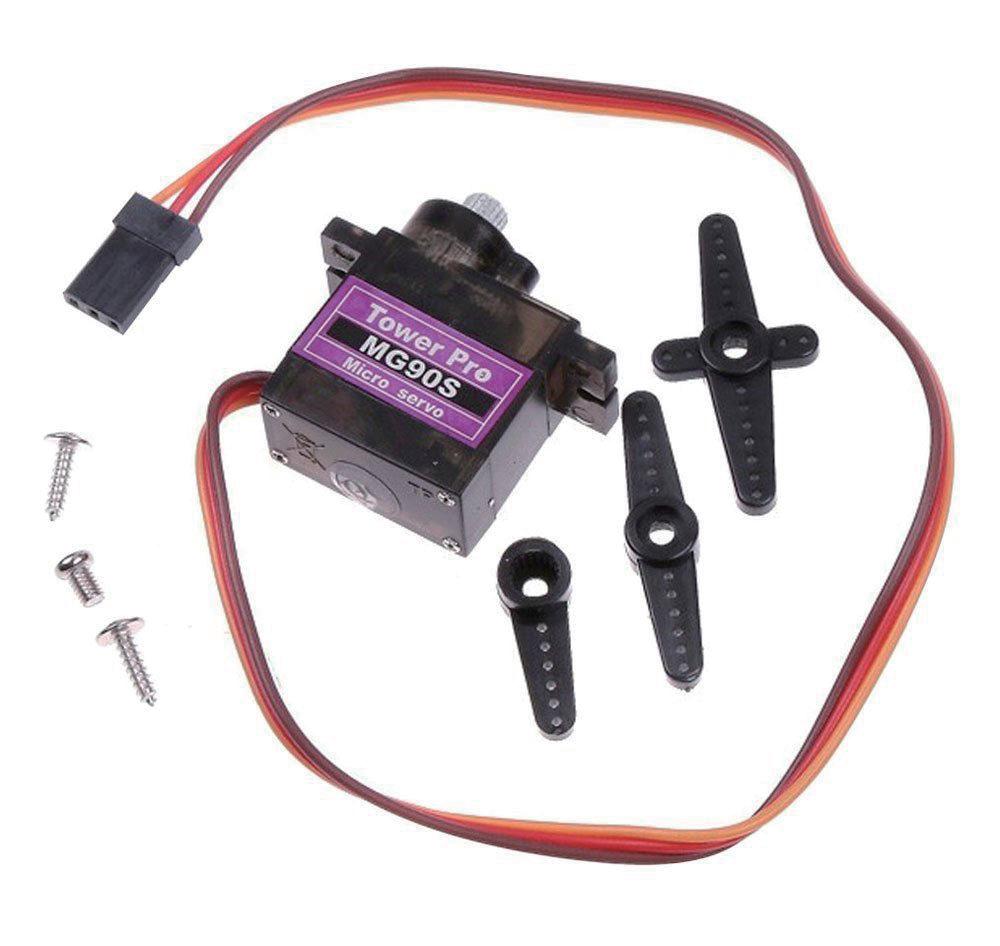

MG90S Servo Metal Gear

AC031

• Operating Speed: 0.1sec/60degree(4.8v), 0.08sec/60degree(6v)
• tem Name: MG90S servo
• Weight: about 13.4g
• Dimension: 22.8 x 12.2 x 28.5mm
• Stall Torque: 1.8kg/cm(4.8V ), 2.2kg/cm(6V)
• Operating Voltage: 4.8-6.0V
• Motor Type: coreless motor
• Gear Type: all metal gear
• Connector Wire Length : 175mm

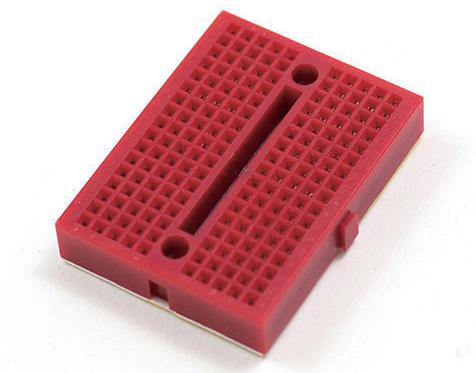

Mini Breadboard (Red)

ST1203

Dimensions: 45mm x 35mm

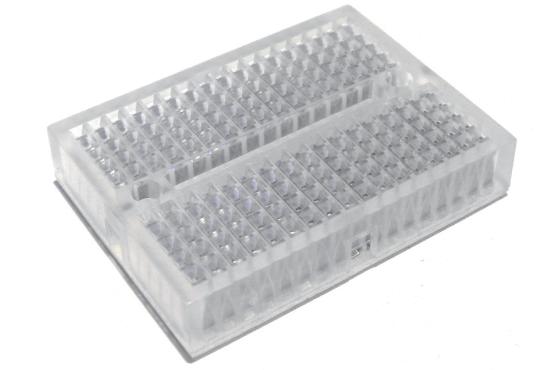

Mini Breadboard (Clear)

AC019

Dimensions: 45mm x 35mm

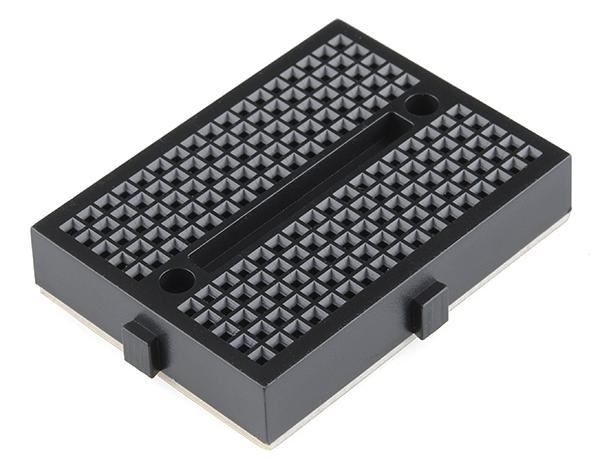

Mini Breadboard (Black)

ST1200

Dimensions: 45mm x 35mm

400 Point Solderless Breadboard (Clear)

AC034

Dimensions: 83mm x 55mm

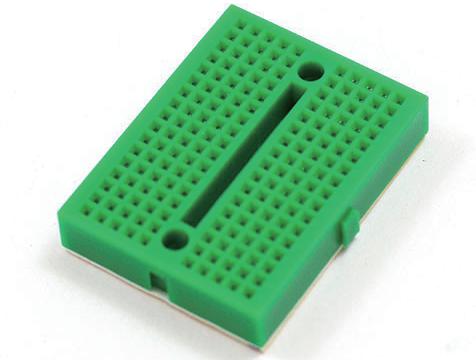

Mini Breadboard (Green)

ST1198

Dimensions: 45mm x 35mm

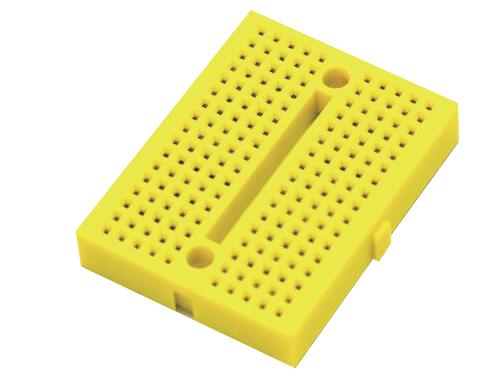

Mini Breadboard (Yellow)

ST1199

Dimensions: 45mm x 35mm

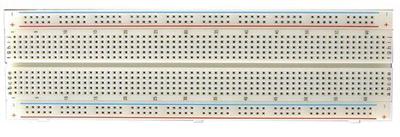

830 Point Solderless Breadboard( White)

ST1184

Dimensions: 56mm x 165mm x 8.5mm
