Moudle for Arduino (13)

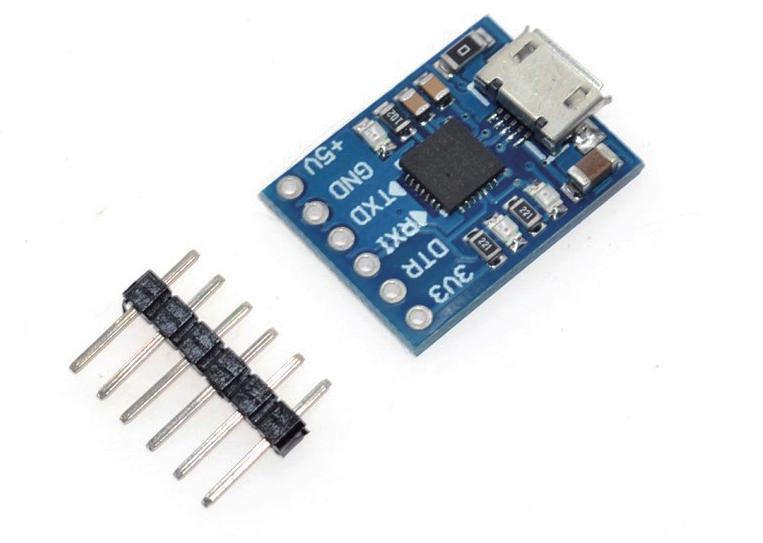

CP2102 Micro USB to UART TTL Module 6Pin Serial Converter

ME236

Features:
1, Use original chip CP2102, generate COM port after installing the driver.
2, The standard input MICRO MINI-USB cable connected to the computer USB interface, with 3.3V and 5V two power output
3, With a resettable fuse. In the event of accidental short-circuit can effectively protect your device and computer USB port to download
4, On-board status indicators, receiving indicator properly installed drive status indicator remains, send and receive indicator flashes when the
communication with run LED indicator.
5, Supports baud rates from 300bps ~ 1Mbps between
6, The communication format support: (1) data bits 5, 6, 7, 8. (2) support 1.5, 2 stop bits. (3) odd, even, mark, space, none parity
7, Supported operating systems: windows 8.1 / 7 / vista / XP / 98, Mac OS-X / OS-9, Linux
8, USB seat MICRO MINI-USB interface block
9, With DTR trigger signal output can be directly arduino pro mini ATMEGA328P and other Arduino board download traffic.
10, Module size: 15.7mm x 21.2mm super small.

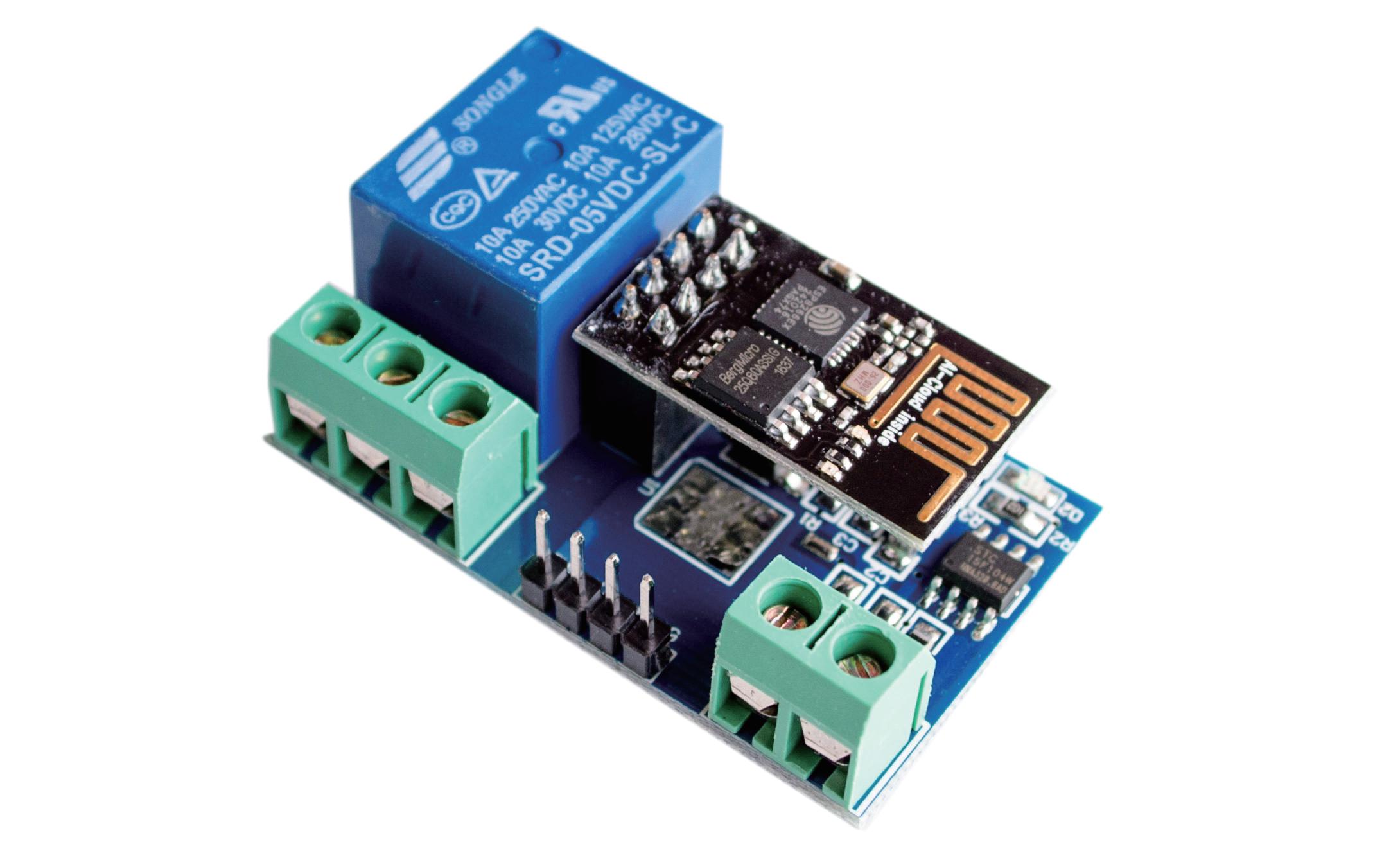

ESP8266 5V WIFI Relay Module

ME237

Featrure:
Onboard ESP8266 WIFI module, AP mode 5 client can be connected at the same time; Module has two work modes: 1, cell phones, carry on the WiFi module;2, mobile phone and WiFI module; Carrying on the same router, by mobile phone APP to control relay; Onboard 5 v, 10 A / 250 v AC 10 A / 30 v DC relay, absorb 100000 times continuously; Module with diode effusion protection, short response time; Module baud rate: 9600,8,1,0,0.
• Size: 45 x 28mm • IN +,IN-: 5 v power input • TX ,RX and GND: a serial port debug pins

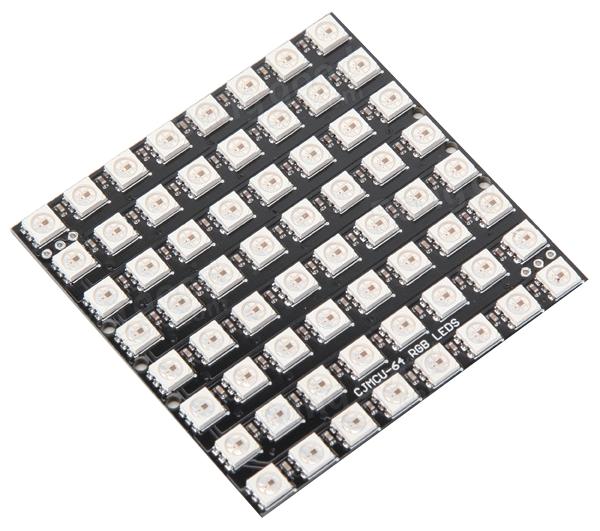

8 x 8 Matrix 64 Bit WS2812 5050 RGB LED

ME165

Featrure:
• 8 x 8 matrix/64 bit • High consistency of RGB chips for all LEDs • Reliable performance of built-in driver IC • Relatively low cost with quality ensured • Use hard plastic for packaging, prevent press damage • LED with built-in IC is brighter than common LED

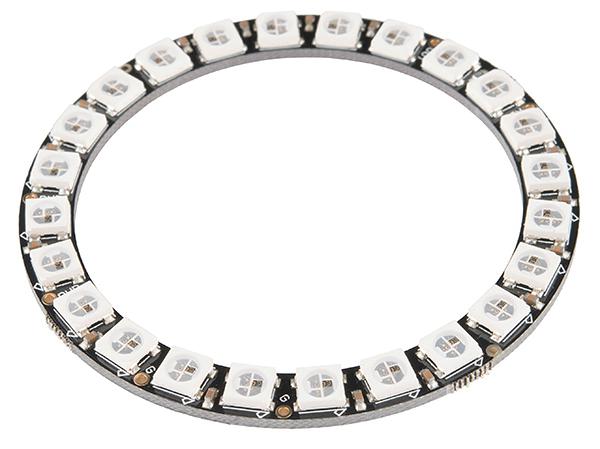

24 Bit WS2812 5050 RGB LED Ring

ME152

Featrure:
• 24 bit/ Ring shaoe • High consistency of RGB chips for all LEDs • Reliable performance of built-in driver IC • Relatively low cost with quality ensured • Use hard plastic for packaging, prevent press damage • LED with built-in IC is brighter than common LED

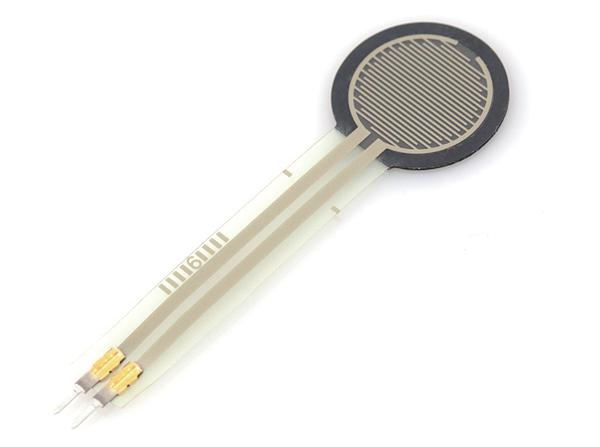

Force sensitive resistor

ME238

Featrure:
This is a force sensitive resistor with a round, 0.5″ diameter, sensing area. This FSR will vary its resistance depending on how much pressure is being applied to the sensing area. The harder the force, the lower the resistance. When no pressure is being applied to the FSR its resistance will be larger than 1MΩ. This FSR can sense applied force anywhere in the range of 100g-10kg.

Force sensitive resistor

ME239

Featrure:
This is a force sensitive resistor with a square, 1.75×1.5″, sensing area. This FSR will vary its resistance depending on how much pressure is being applied to the sensing area. The harder the force, the lower the resistance. When no pressure is being applied to the FSR its resistance will be larger than 1MΩ. This FSR can sense applied force anywhere in the range of 100g-10kg.

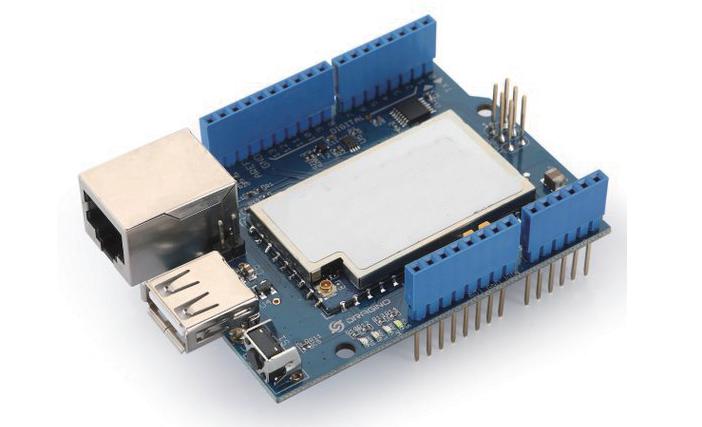

Arduino Yun Shield

ME172

Featrure:
Open source Linux (OpenWrt) inside; Low power consumption; Compatible with Arduino IDE 1.5.4 or later, user can program, debug or upload sketch to Arduino board via Arduino IDE; Managed by Web GUI, SSH via LAN or WiFi; Software upgradable via network; Built-in web server;
Support internet connection via LAN port, WiFi or 3G dongle; Support USB flash to provide storage for Arduino projects.
Failsafe design provides robustly system. Compatible with Arduino Leonardo, Uno , Duemilanove, Diecimila, Mega

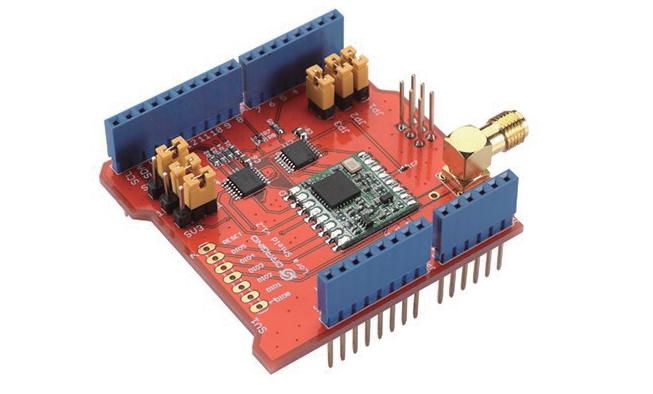

LoRa Shield

ME181

Featrure:
Compatible with 3.3v or 5v I/O Arduino Board; Frequency Band: 915MHz/868 MHZ/433 MHZ (Pre-configure in factory); Low power consumption Compatible with Arduino Leonardo, Uno, Mega, DUE; External Antenna via I-Pex connector; 168 dB maximum link budget.
+20 dBm – 100 mW constant RF output vs; +14 dBm high efficiency PA; Programmable bit rate up to 300 kbps; High sensitivity: down to -148 dBm; Bullet-proof front end: IIP3 = -12.5 dBm; Excellent blocking immunity; Low RX current of 10.3 mA, 200 nA register retention;
Fully integrated synthesizer with a resolution of 61 Hz; FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation; Built-in bit synchronizer for clock recovery; Preamble detection; 127 dB Dynamic Range RSSI; Automatic RF Sense and CAD with ultra-fast AFC; Packet engine up to 256 bytes with CRC.
Built-in temperature sensor and low battery indicator.

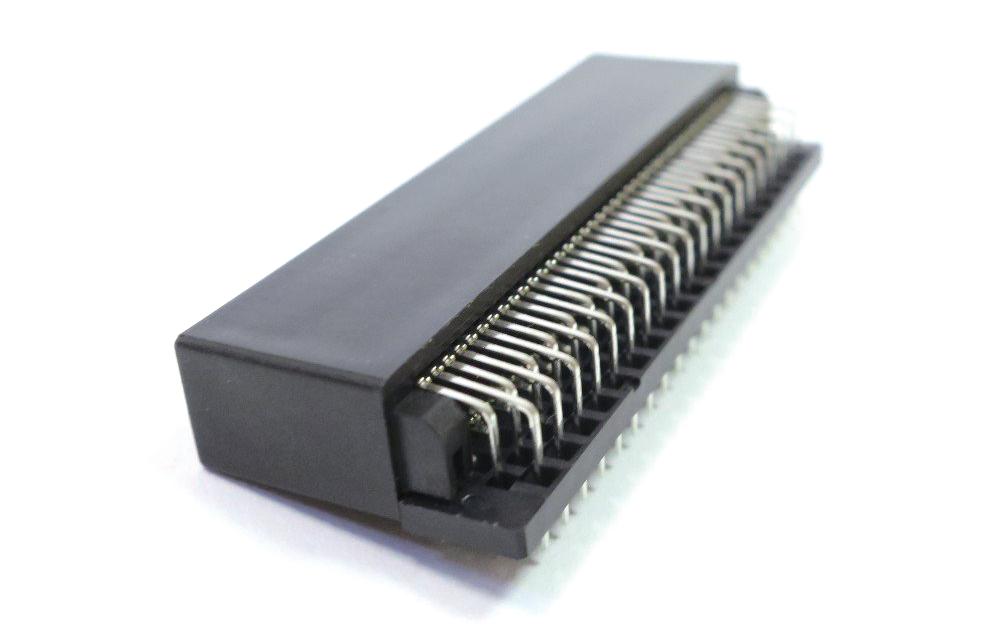

Edge Connector for BBC Micro-Bit

ME190

Featrure:
This is a connector that fits directly to the edge contacts of a BBC Micro-Bit. The connector has 80 pins, but because of the different widths of the MicroBit edge contacts, some of the Micro-Bit contacts will map to more than one of this connector’s pins.
The pitch of the pins is 1.27mm. Please see the datasheet in the ‘Resources’ tab for more info

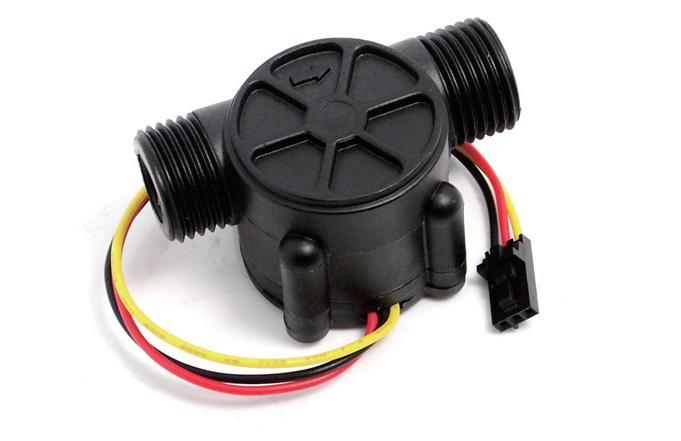

G1&2″ Water Flow Sensor

ME205

Specifications:
• Mini. Wokring Voltage: DC 4.5V • Max. Working Current: 15mA (DC 5V) • Working Voltage: DC 5V~24V • Flow Rate Range: 1~30L/min • Load Capacity: ≤10mA (DC 5V) • Operating Temperature: ≤80°C • Liquid Temperature: ≤120°C • Operating Humidity: 35%~90%RH • Water Pressure: ≤1.75MPa • Storage Temperature: -25~+ 80°C • Storage Humidity: 25%~95%RH
