Series

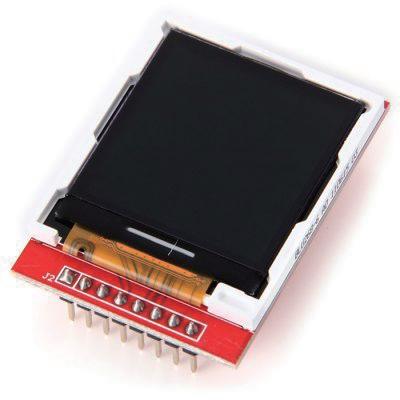

| TF010 Driver chip ST7735S, Resolution 128*128, SPI interface type, no touch  1.44inch |

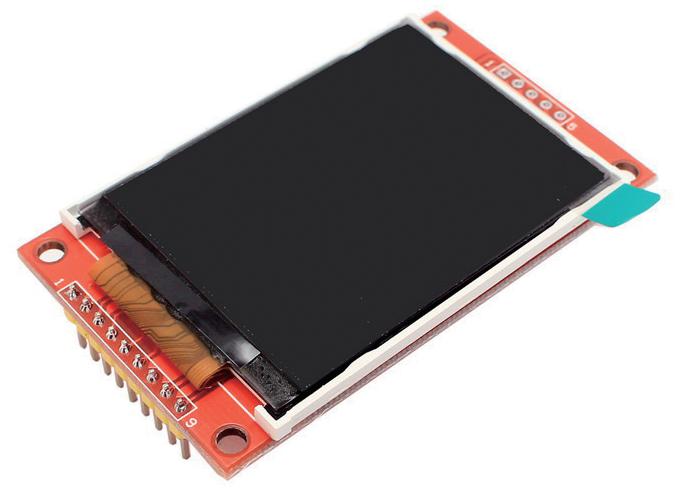

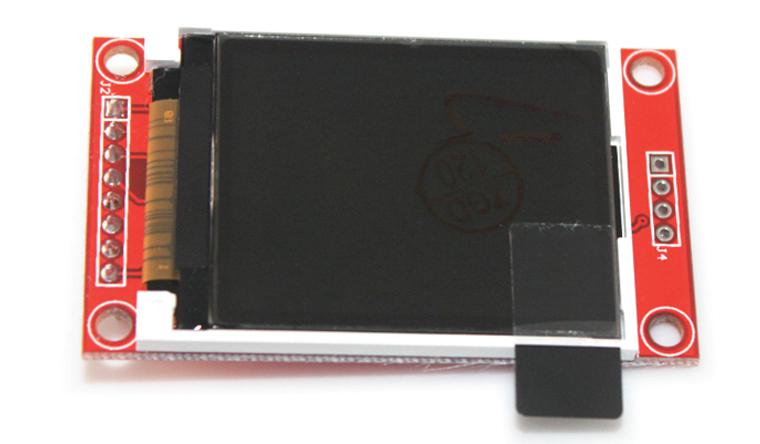

TF014 Driver chip ST7735S, resolution 128*160 SPI interface type, no touch  1.8inch |

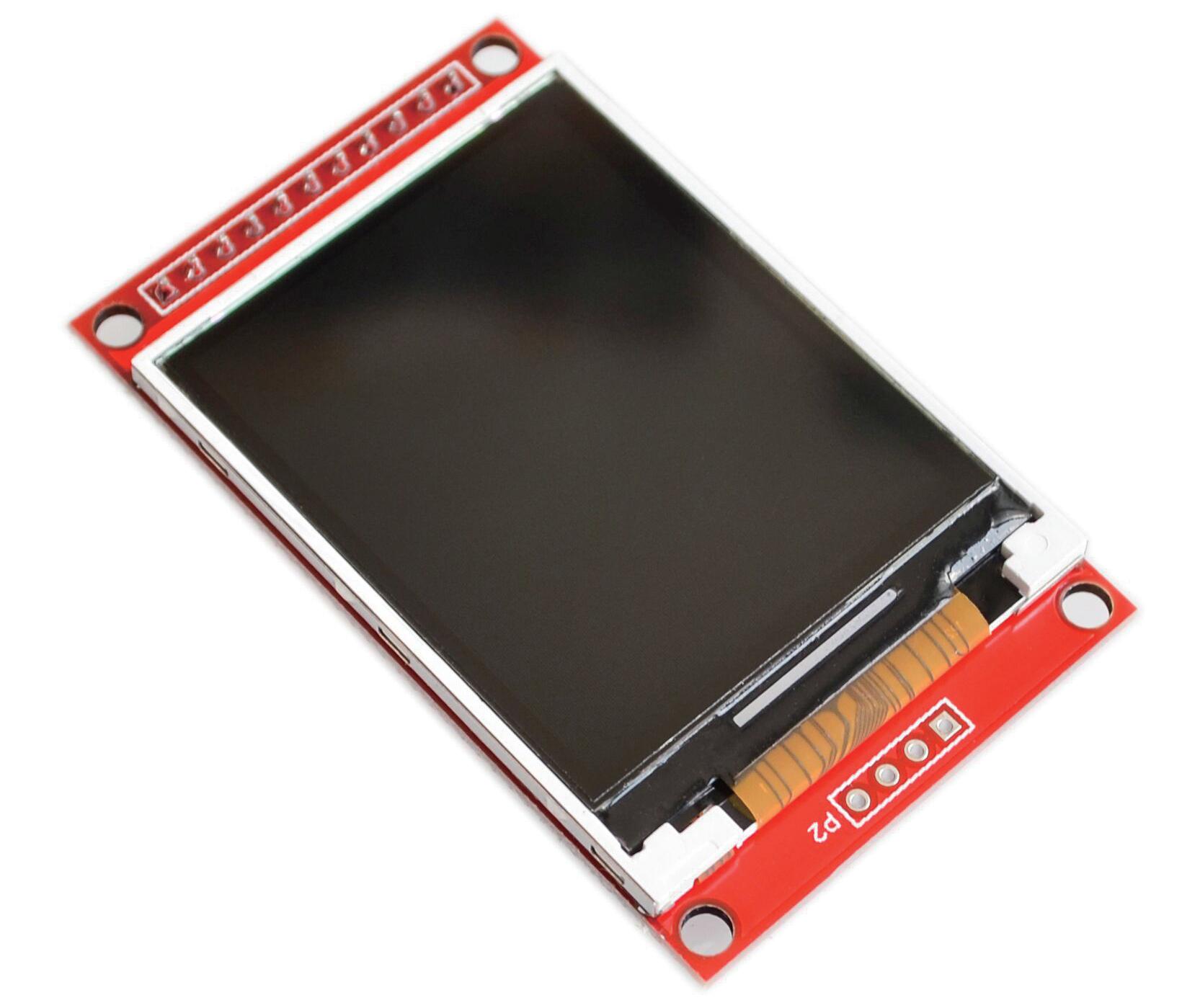

TF016 Driver chip ILI9225,resolution176*220, SPI interface type, no touch  2.2inch |
| TF018 Driver chip ILI9225，resolution176*220, SPI interface type, no touch  2.0inch |

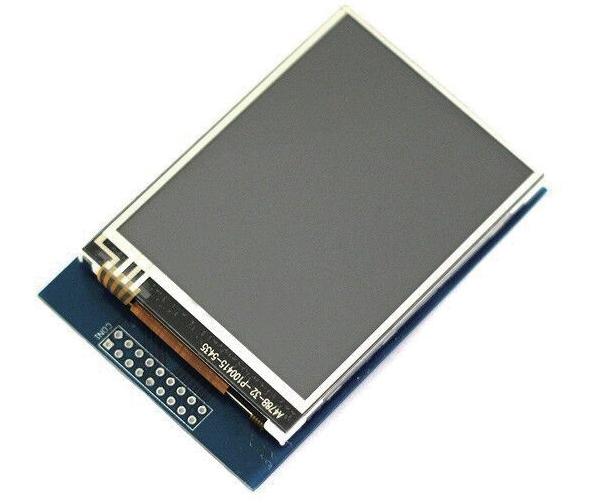

TF024 Driver chip ILI9341, resolution 240*320, interface type 8 BIT，touch  2.4inch |
TF026 Driver chip ILI9341, resolution 240*320, interface type 8 BIT，touch  2.6inch |

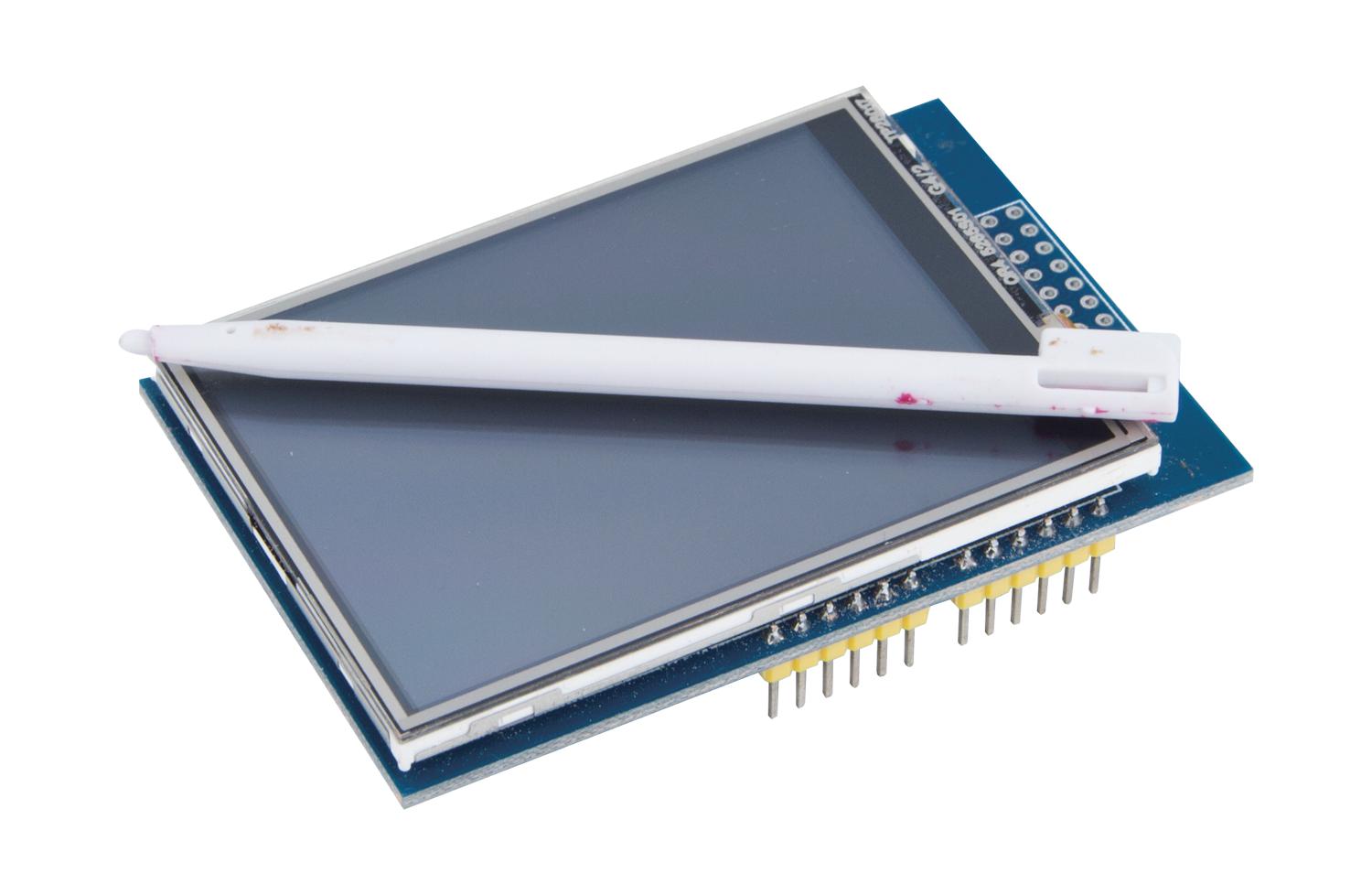

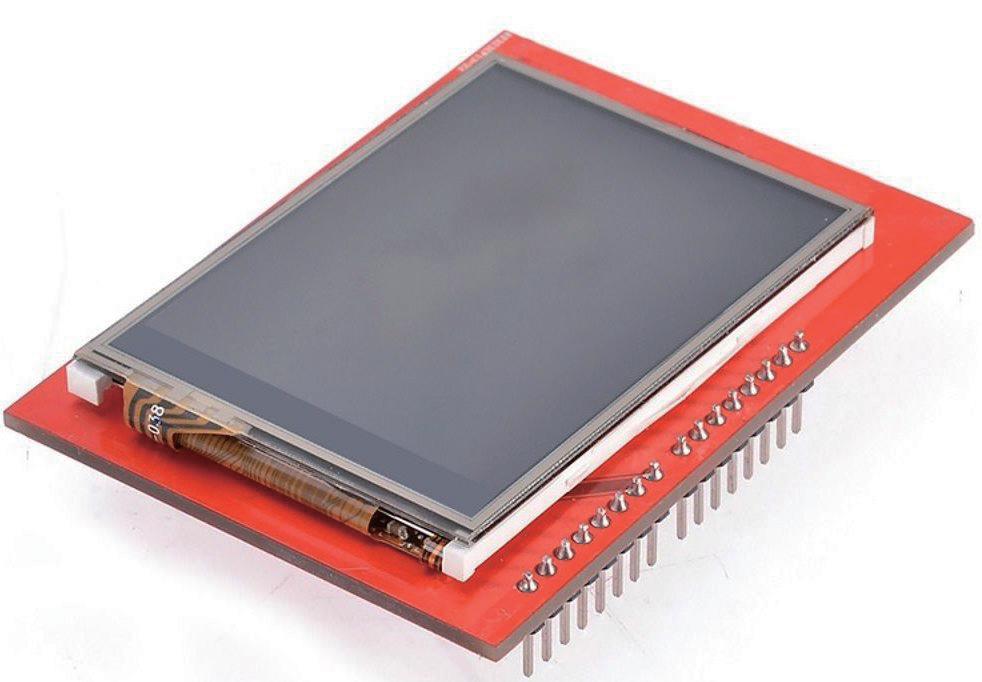

| TF028 Driver chip ILI9341, resolution 240*320, interface type 8 BIT，touch  2.8inch |

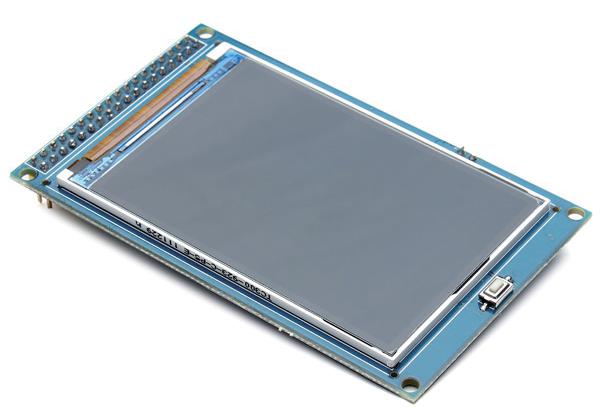

TF036 Driver chip HX8357, resolution 320*480, 16BITinterface type, no touch  3.0inch |

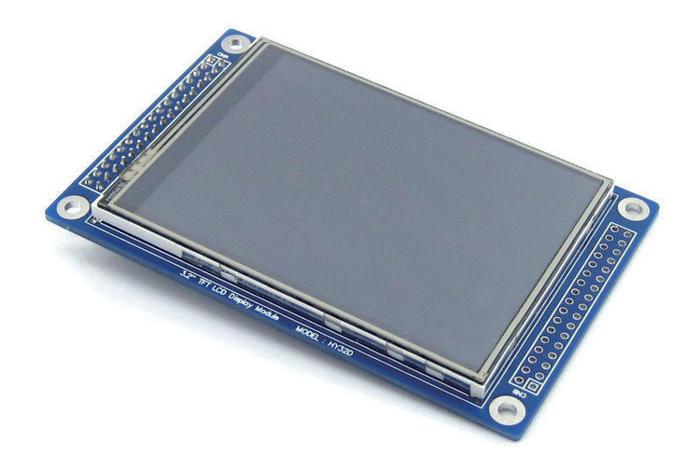

TF038 Driver chip HX8357, resolution 320*480, 16BIT interface type, no touch  3.2inch |
| TF040 Driver chip ILI9341, resolution 240 x 320, interface type SPI，touch  3.2inch |

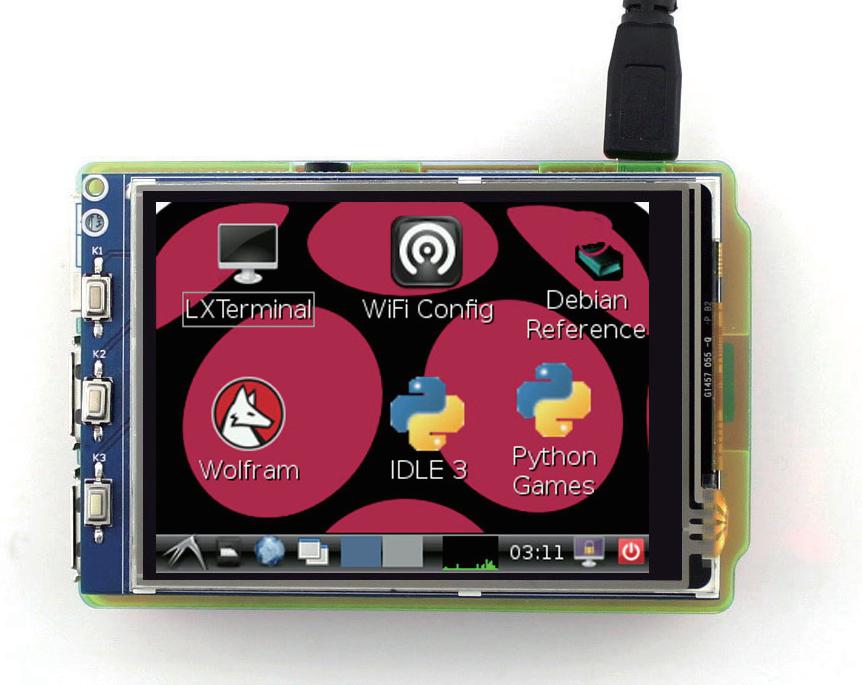

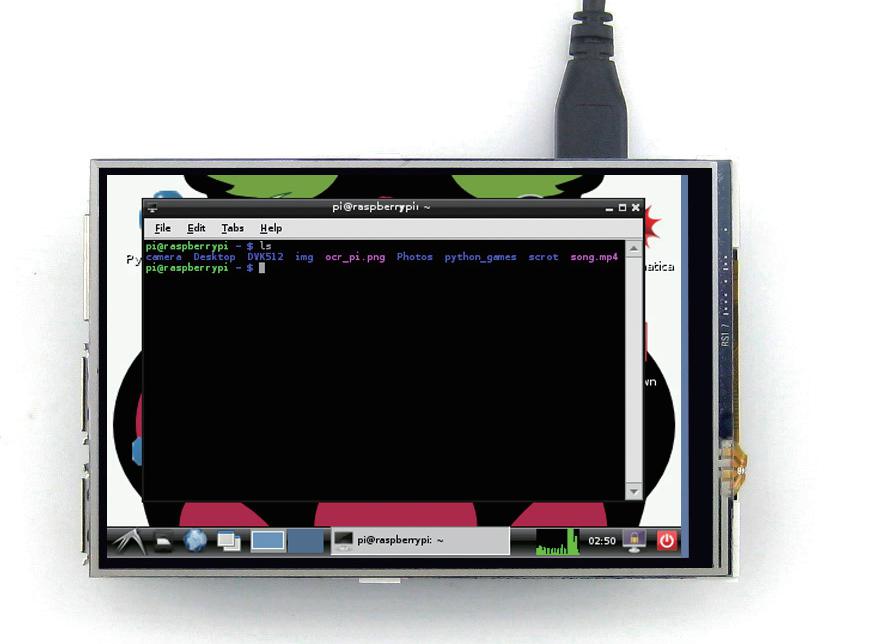

TF044 Driver chip ILI9486, resolution320*480, interface type SPI, touch 3.5inch |
TF045 HDMI, resolution 320*480,RGB, touch  4.0inch |

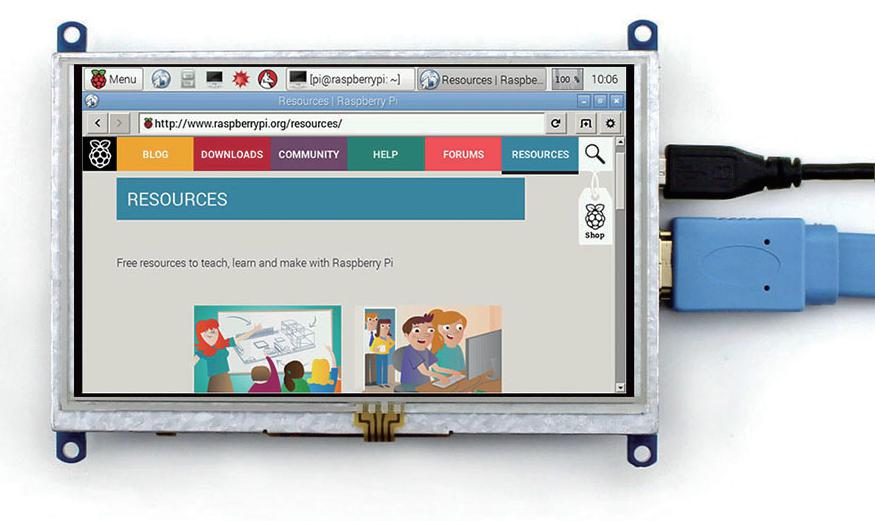

| TF046 HDMI, resolution 800*480,RGB, touch  5.0inch |

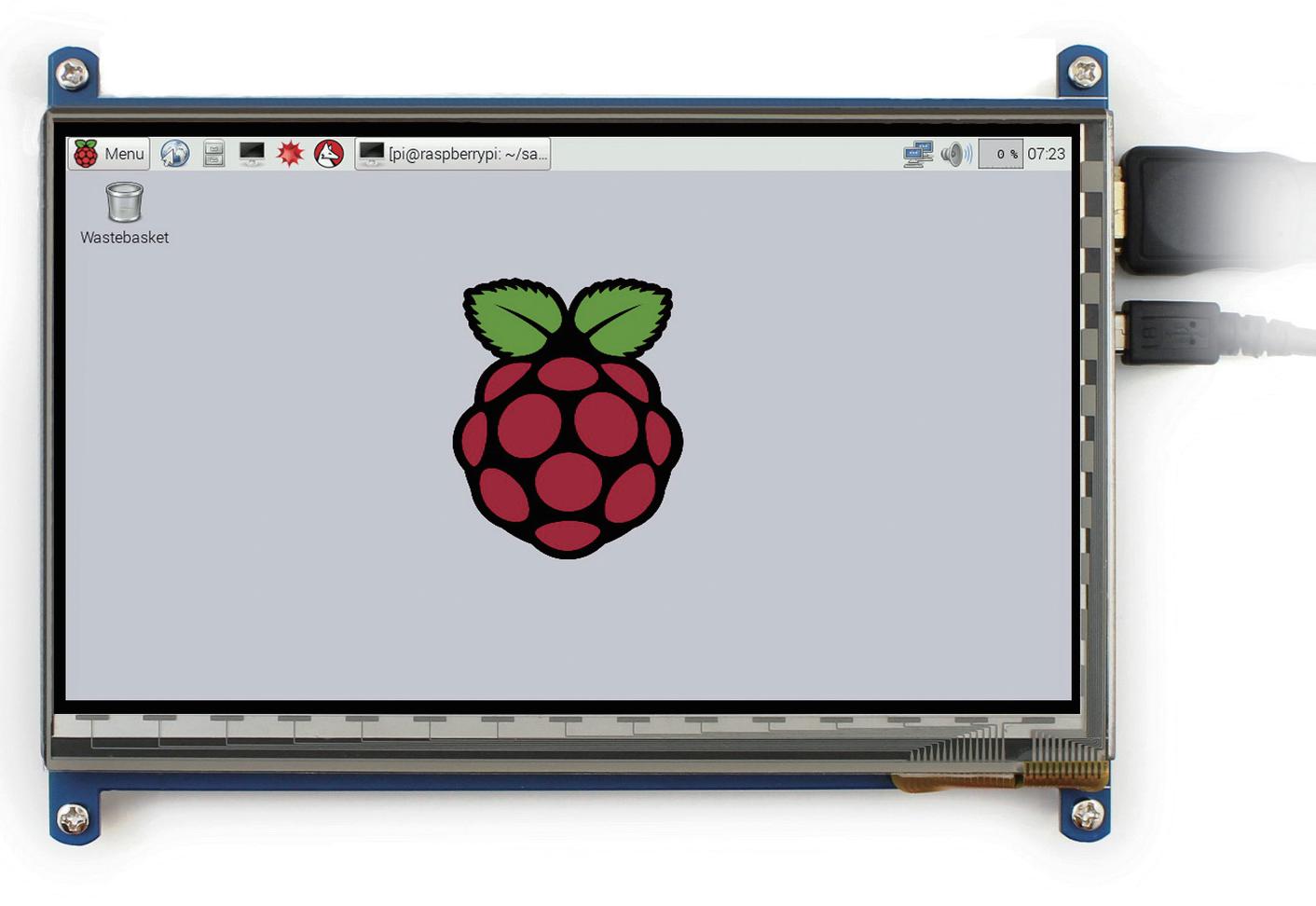

TF048 HDMI-B, resolution 800*480,RGB, touch(capacitive)  7.0inch |

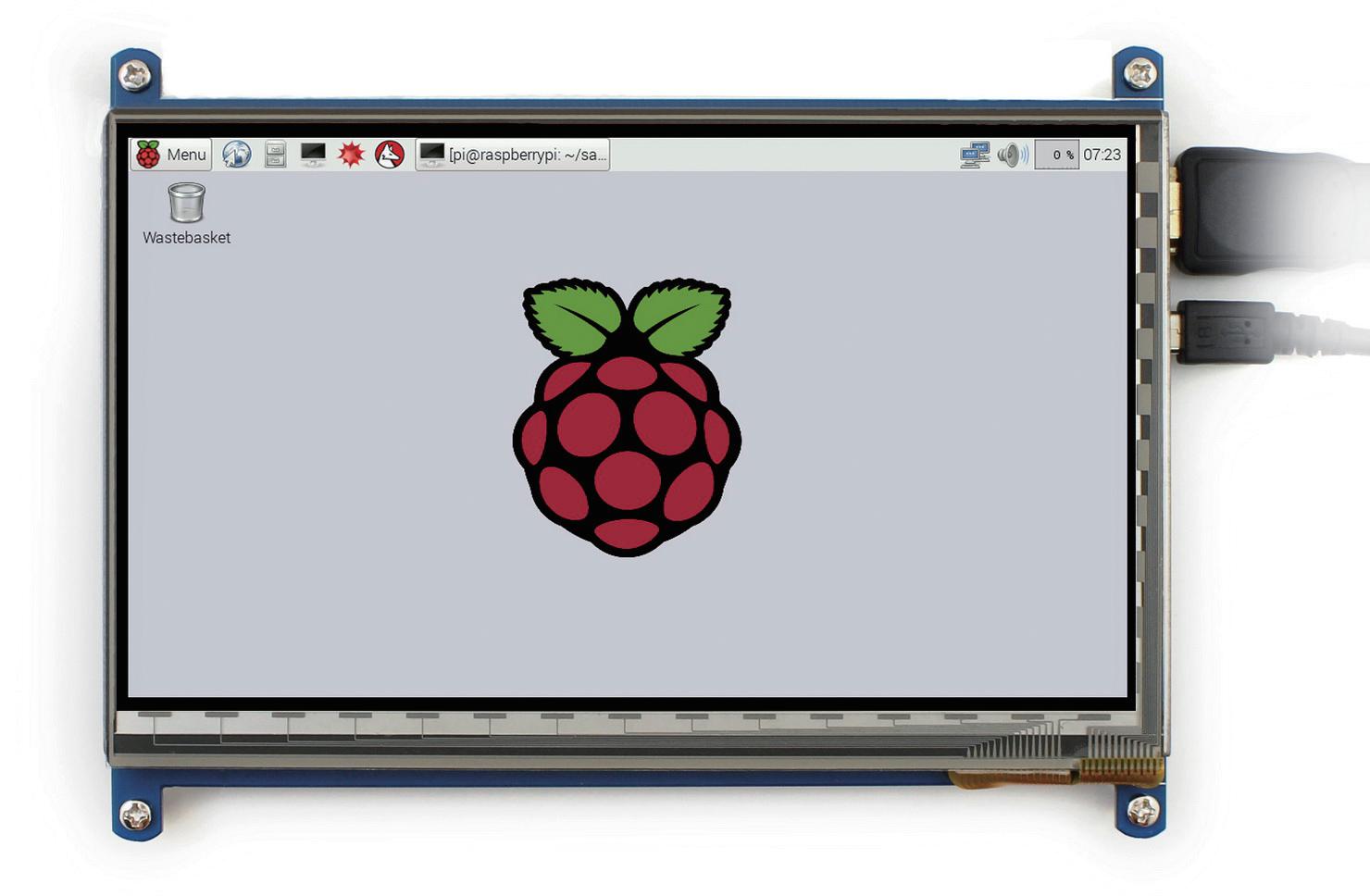

TF050 HDMI-C, resolution 1024*768,RGB, touch(capacitive)  7inch(High) |

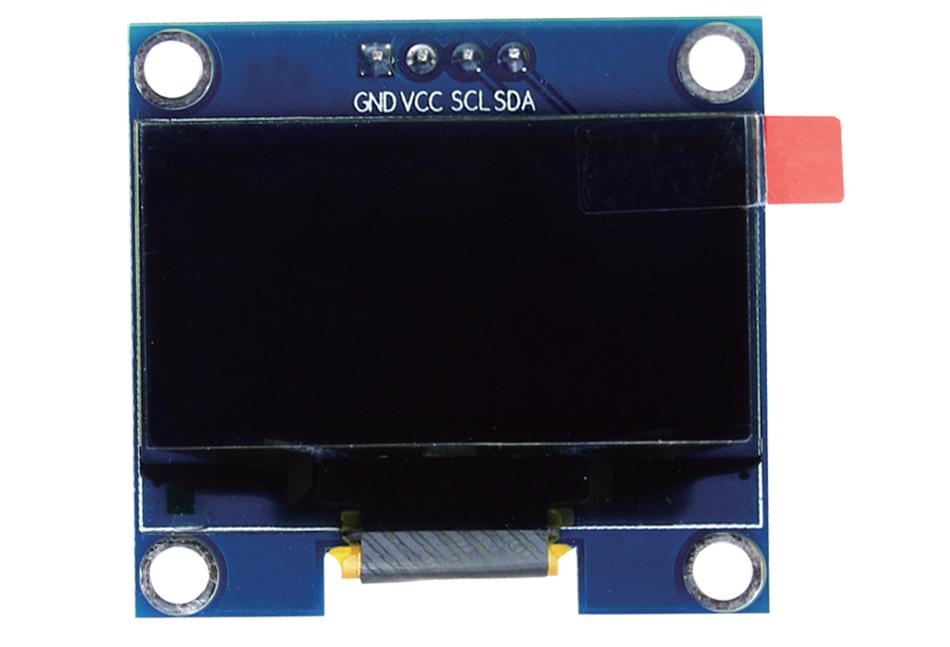

1.3 inch OLED Module Screen 128×64 White Color I2C for Arduino TF051
1.3 inch OLED Module Screen 128×64 White Color I2C for Arduino®
TF051
This is an OLED monochrome 128×64 dot matrix display module with I2C Interface. Comparing to LCD, OLED screens are way more competitive, which has a number of advantages such as high brightness, self-emission, high contrast ratio, wide viewing angle, wide temperature range, and low power consumption. It is compatible with Arduino. It is easy to use with the help of the U8glib library for Arduino.
Interface: I2C interface
Resolution: 128 x 64
Angle of view: >160 degree
Display color: White
Display dimension: 1.3inch
Driver IC: SH1106
Working voltage: 3.3V~5VDC
Working current: 25mA (Max)
Application: smart watch, MP3,
thermometer, instruments,
DIY projects, etc..
0.96 inch OLED Module Screen 128×64 White Color I2C for Arduino TF052
0.96 inch OLED Module Screen 128×64 White Color I2C for Arduino®
TF052
High brightness and high definition; Small size and lightweight; High resolution: 128 x 64; Viewing angle: >160 degrees; Support many control chips such as XS128, Arduino, AVR, STM32 and CSR chips, etc.; With low power consumption; Wide voltage support; Working temperature: -30~70’C; Dimension: 27.0 x 27.0 x 4.1mm; Driver chip: SSD1306
