Zero Client Comparison

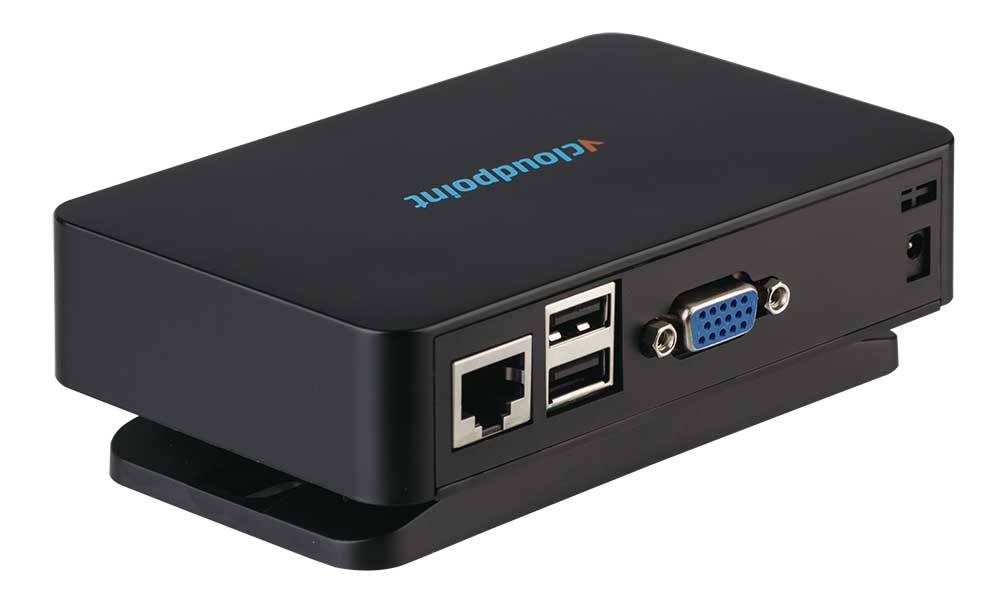

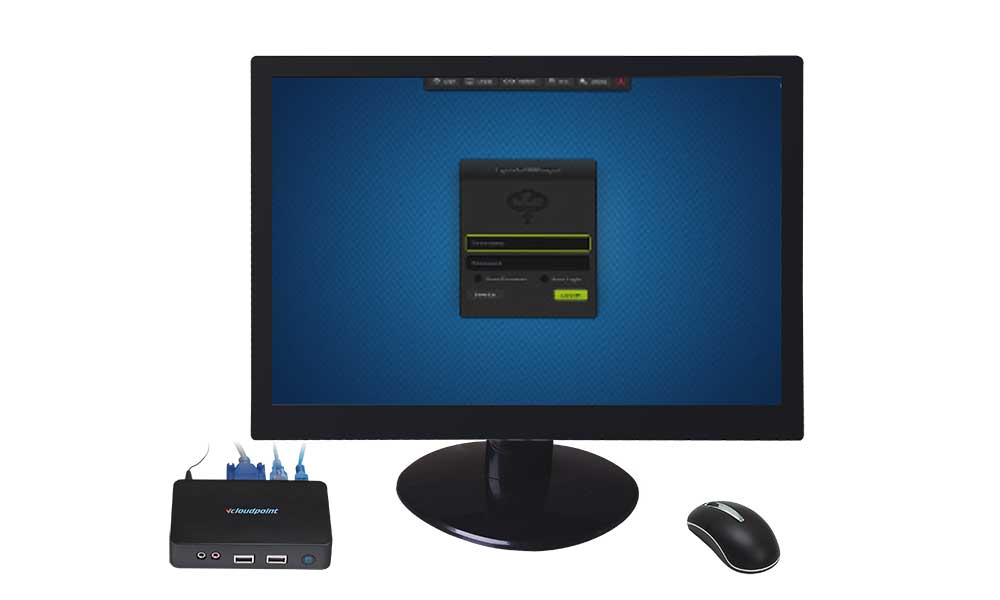

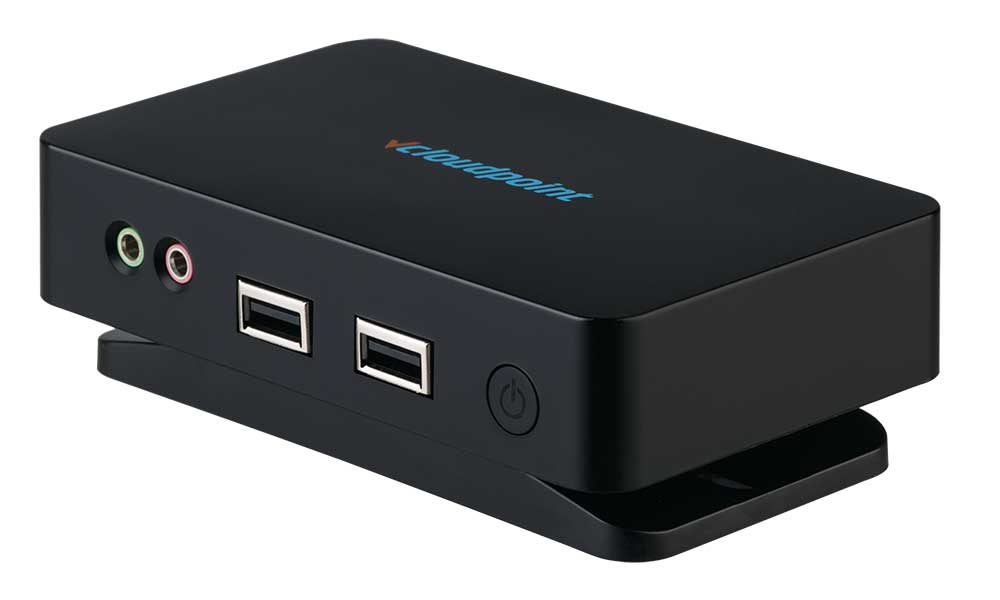

  • S100

    Classic Model

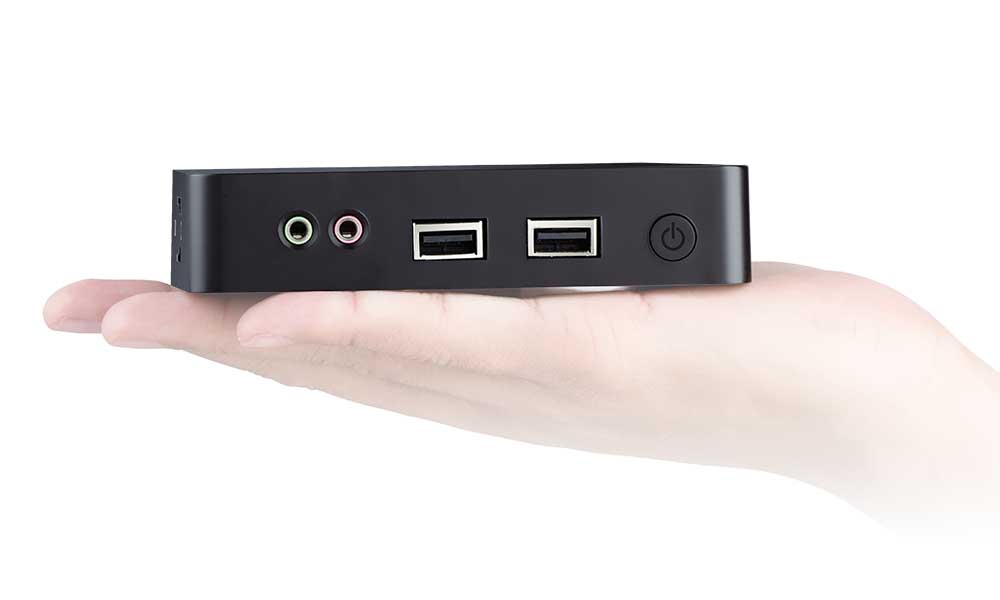

    Size of a 4.7-inch iPhone

    VGA Video Output

    10/100 Mbps Ethernet

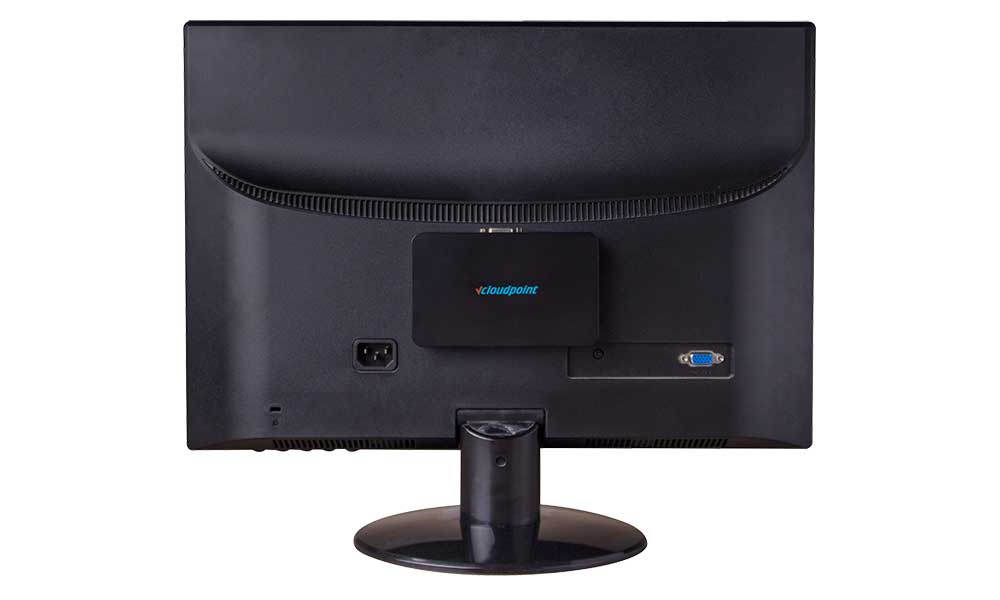

    With mounting bracket, without anti-theft gadget



    Click to view large image

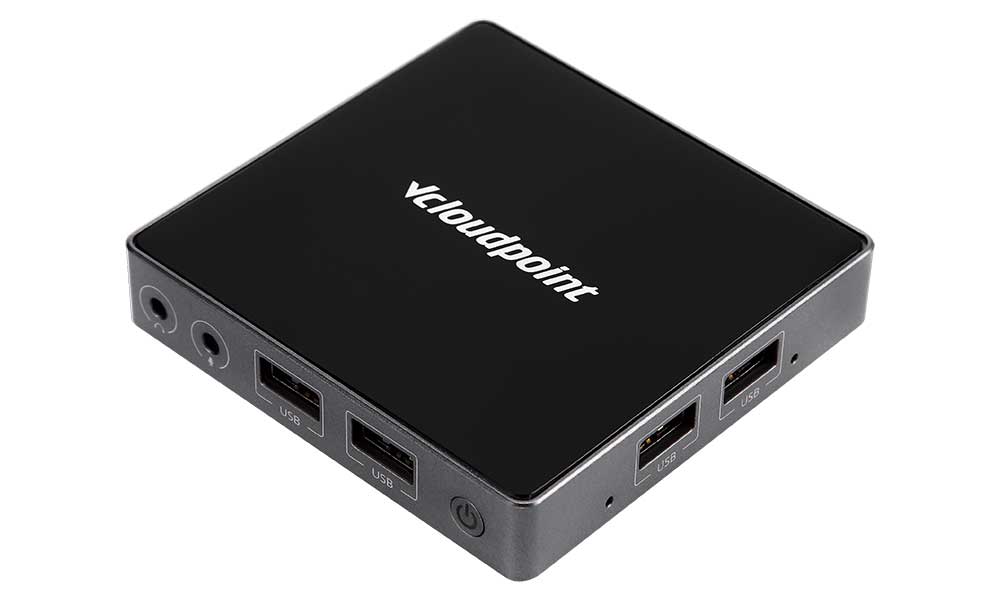

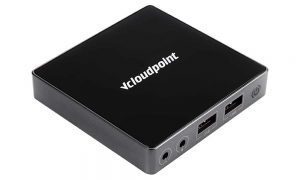

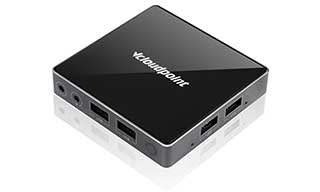

  • V1

    HD Display Model

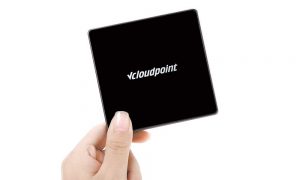

    Size of a fist

    VGA & HDMI Video Output

    10/100/1000 Mbps Ethernet

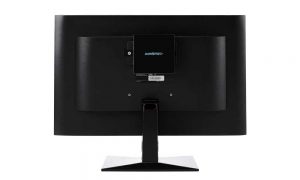

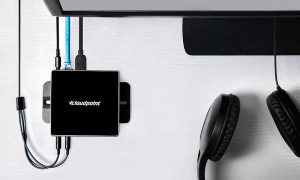

    With mounting bracket and anti-theft gadget



    Click to view large image

Zero Client Specifications



The following Specializations are based on vMatirx Server Manager 2.1.1, and device firmware 2.0.2.18; Specializations may vary depending on the software versions.

S100 V1

Download This Datasheet
Appearance Size 124(W)x75(D)x26(H) mm 93(W)x90(D)x18(H) mm
Net Weight 107g 150g
Color Matte black Diamond black & moon sliver

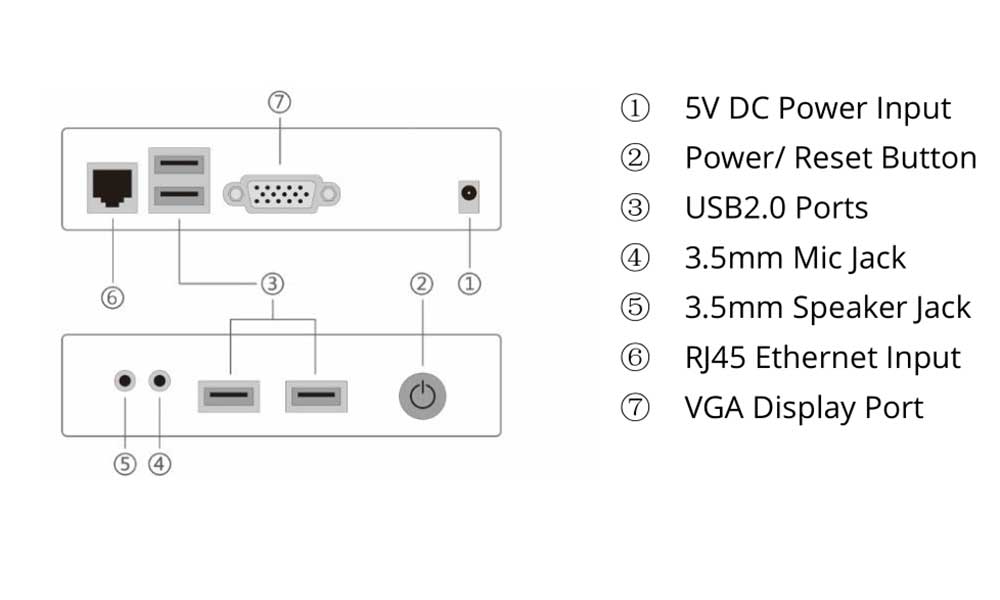

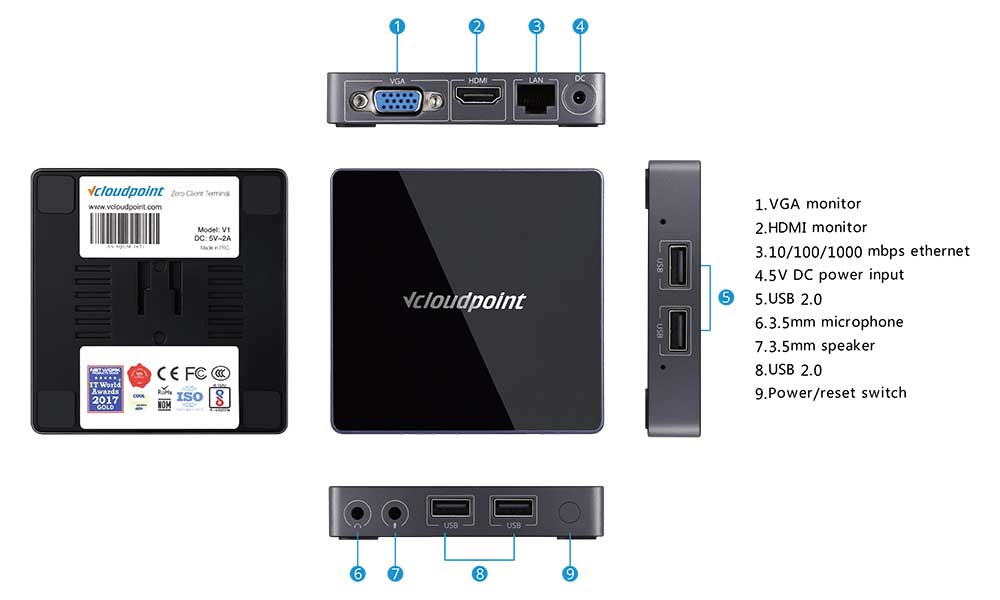

Connections Video 1×VGA 1×HDMI，1×VGA
USB 4×USB 2.0 4×USB 2.0
Network 1×RJ45 1×RJ45
Audio 1× 3.5mm audio input，1× 3.5mm audio output 1× 3.5mm audio input，1× 3.5mm audio output
Power 1×5V DC 1×5V DC
Switch 1×power/reset switch 1×power/reset switch
Anti-theft Gadget No Yes
Power Consumption Standby： 0.2w; Wokring： 5W (independent of external USB devices) Standby： 0.2w; Wokring： 5W (independent of external USB devices)
Display Support VGA HDMI / VGA
Resolution Standard (32 bits @ 60Hz) 640×480，800×600，1024×768，1280×1024，1600×1200
Wide (32 bits @ 60Hz) 1360×768，1366×768，1440×900，1600×900，1680×1050，1920×1080
Configuration Methods Host side & Client side Host side & Client side
Audio Support HQ16 bits, 44.1Khz/ 48Khz，input and output through 3.5mm jacks or USB ports
Video Support Full HD 1080p for all media formats (Server-side rendering for local and web-embedded videos on most media players; Client-side rendering for local videos on VLC player 2.1.5 or newer versions)
USB Devices Support Storage Devices, USB Hubs, Single, Multi-functional & Dot Matrix Printers，Smart Card Reader, Office &
POS Scanners, Single Touch Screens, Ukeys, Parallel to USB Convertors, etc; An external power supply
may be required for devices working on large voltage. View Test USB devices
Networking Wired 10/100 Mbps Ethernet (RJ45) 10/100/1000 Mbps Ethernet (RJ45)
WIFI optional external WIFI antenna at additional cost: 802.11b/g/n optional external WIFI antenna at additional cost: 802.11b/g/n
Maximum number
of users per shared host		 vMatrix Server Manager permits up to 99 users per shared host. Actual number of supported users
depends on the host configuration and the type of applications used. View Host Configuration Guide
Internal hardware All solid-state design. No moving parts, no fans, no local user storage.
Data Security No local data storage on device. USB data access controlled by user policy.
Reliability(MTBF) >100,000 hours
Environmental 0 to 40 degrees Celsius 10 to 85% relative humidity (non-condensing) No moving parts permits use in
high dust / particulate / vibration environments.
Certifications FCC Class A&B, CE, CCC, RoHS compliant, BIS, NOM, ISO 9001:2015, ISO 14001:2015
Software System Microsoft Windows XP SP3 Pro 32bits, 7, 8 ,8.1 & 10 (excluding Starter, Home Basic and Insider editions),
Server 2003 32 bits, 2008R2, 2012, 2012R2, 2016, Multipoint Server 2011, 2012
Included Software vMatrix Server Manager with Dynamic Desktop Protocol (DDP)
Optional Software vMatrix Classroom Control at additional cost
